C 63 AMG

Mercedes-Benz launched the W204 C 63 AMG in 2007 as the first C-Class designed from the outset to accept an AMG eight-cylinder powertrain. Its M156 was also AMG’s first independently developed series-production engine, rather than an enlarged or boosted derivative of a standard Mercedes unit. Those two facts made the car a turning point: the compact performance saloon was no longer chiefly an adaptation exercise, and its broad front body, cooling and rear axle were engineered around the engine’s demands.

The pre-facelift saloon documented here uses the M156.985, a 6,208 cc naturally aspirated 90-degree V8 with four overhead camshafts and four valves per cylinder. Output is 336 kW (457 PS) with 600 Nm, despite the historic “6.3” badge. Manifold fuel injection and a variable intake system feed the high-flow heads. An AMG SPEEDSHIFT PLUS 7G-TRONIC automatic drives the rear wheels; this is not the later multi-clutch MCT transmission introduced during the facelift period.

AMG widened the front track, developed model-specific steering and suspension and created a rear axle capable of managing the M156’s torque. Larger body openings and a power-dome bonnet communicated the packaging below. Performance Package and later Performance Package Plus options altered brakes, suspension and eventually output-related hardware, while the 2011-on facelift brought different transmission technology. A premium record cannot use the highest optional or later figure as the default for this original 2007–2011 saloon.

The engine’s sound became the W204’s defining cultural feature: large displacement produces dense low-frequency pulses, while the four-cam valvetrain and intake add sharper layers as speed rises. Cold-start flare, load and overrun each reveal different control states. Manifold, catalyst and rear-silencer modifications are widespread and can radically amplify them. RedlineCodex therefore requires original gas-path evidence, warm-up status, gearbox mode and microphone distance before a recording can represent the stock M156 rather than a popular modified interpretation.

Mechanical provenance deserves equal attention. Early M156 engines are associated with documented cylinder-head-bolt revisions and other age-related service topics, but a model-wide history cannot diagnose an individual car. Engine number, repair invoices, oil and coolant evidence and inspection findings belong to chassis-level records.

Within the lineage, the W204 follows the 367 PS naturally aspirated C 55 and precedes the W205 C 63 S, whose 4.0-litre hot-V twin-turbo M177 reduces displacement while increasing output and torque. The later W206 goes further to a four-cylinder performance hybrid. That sequence makes the M156 car historically legible: it is the maximum-displacement, naturally aspirated peak of the factory C-Class AMG, not simply an older version of the same formula.

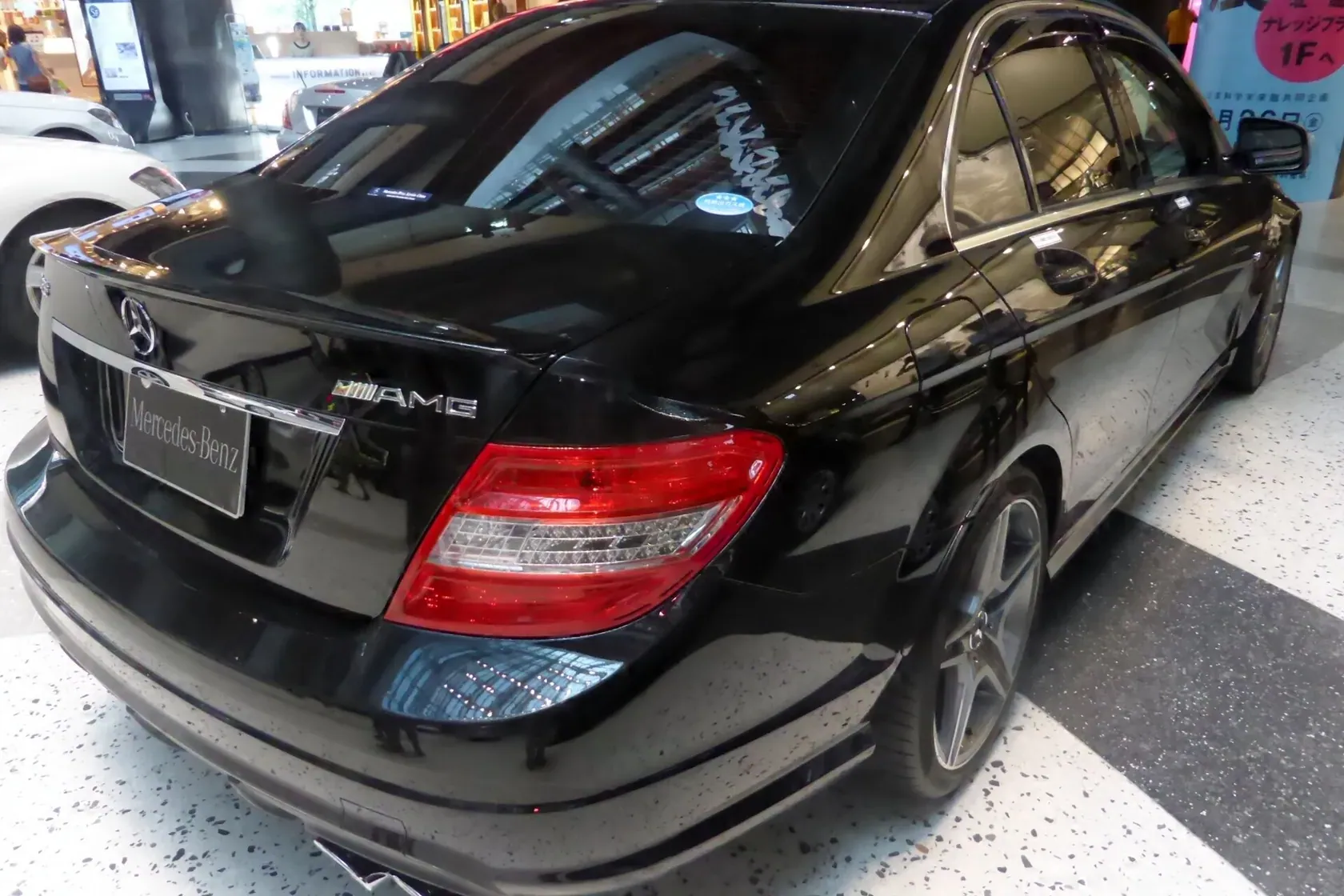

The focus here is the original 2007–2011 W204 / 204.077 C 63 AMG saloon at 457 PS with 7G-TRONIC. It excludes the estate, coupé, facelift MCT cars, Edition 507, Black Series and aftermarket power packages. That narrow scope explains the famous 6.3 badge and sound. The exact engine suffix, transmission phase, option boundaries and service evidence create a usable reference for originality rather than a composite assembled from the most desirable numbers across the entire W204 range.
