Sprinter Trueno GT Apex

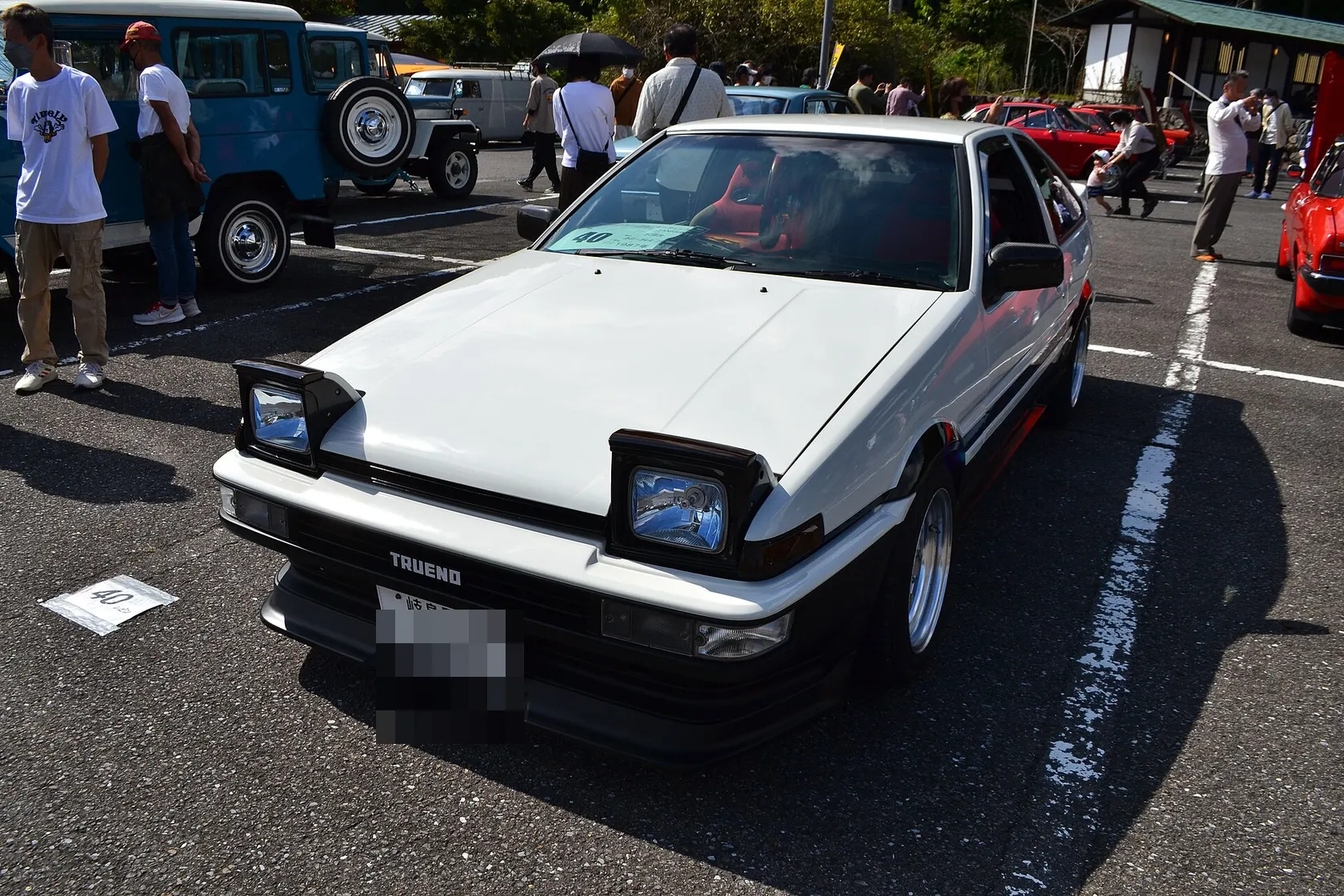

Toyota built the Sprinter Trueno GT Apex (AE86) from 1983–1987. The AE86 combined a high-revving twin-cam four with a light front-engine, rear-drive chassis. Its three-door hatchback coupé form and rear-wheel-drive sports coupé purpose locate it within a specific chapter of the marque’s performance history.

This is the Japanese-market AE86 Sprinter Trueno GT Apex hatchback, not the Corolla Levin, lower grades or later front-drive Truenos. That scope is important: familiar badges can cover several engines, markets and model years, while road cars and competition derivatives may share a name without sharing a usable technical specification.

The mechanical centre is the 4A-GEU, a 1,587 cc naturally aspirated inline-4. The period specification represented here is 96 kW (130 PS) and 149 Nm. Those figures stay attached to this configuration rather than blending regional tunes or later revisions.

The 4A-GEU uses twin overhead camshafts, four valves per cylinder and electronic fuel injection. The installation is longitudinal front engine, rear-wheel drive, working through a 5-speed manual. That combination determines throttle response, traction and the path by which induction, combustion and transmission sound reach the cabin and roadside.

Useful listening markers include high-revving twin-cam four, individual intake pulses, five-speed manual, rear-drive driveline. A genuine cold start records cranking, first combustion and the transition to a settled idle; a warm restart is a different event and should be labelled as such.

Under acceleration, microphone position and engine load reveal different layers. An engine-bay or cabin recording can expose induction and valvetrain detail, while an exterior pass gives more weight to exhaust, tyres, turbocharger or supercharger behaviour and the acoustic effect of speed.

The AE86 identity also makes comparisons within the Sprinter Trueno family meaningful. Closely related editions may differ in intake hardware, boost control, gearing, catalysts, silencers or mass, so their recordings should not be treated as interchangeable merely because the body shell looks similar.

Surviving examples frequently carry replacement exhausts, wheels, suspension or engine parts. Those cars can still make valuable contributions when the changes are documented; the archive simply needs to distinguish a modified survivor from an evidenced factory-stock reference.

The 1983–1987 production period supplies another boundary for research. Manufacturers revised emissions calibrations, equipment and market availability during model runs, and historic output may appear in PS, kilowatts or regional horsepower standards. Keeping units and market context visible prevents false precision.

Body layout matters to sound as much as specification sheets suggest. The three-door hatchback coupé changes cabin volume, resonance and the listener’s distance from the powertrain. Engine position, driveline and body openings can therefore make related engines feel substantially different in use.

Period photographs establish design and historical context, but appearance alone cannot prove untouched mechanical condition. Originality should be described component by component, especially for intake, forced induction, catalysts, silencers, transmission and final-drive hardware that can alter performance and sound. Service records and dated photographs can make those distinctions clearer without asking readers to accept appearance as proof.

The Sprinter Trueno GT Apex is therefore best understood as a connected mechanical identity: 4A-GEU, 5-speed manual, rear-wheel drive and the AE86 boundary. Preserving those elements gives readers a useful story now and gives future community recordings an exact historical home.
