NSX-R

Honda built the NSX-R (NA2) from 2002–2005. The 2002 NSX-R was Honda’s final and most aerodynamically developed first-generation Type R flagship. Its two-seat coupé form and lightweight mid-engine sports car purpose locate it within a specific chapter of the marque’s performance history.

The focus here is the facelift Japanese NA2 NSX-R, excluding ordinary 3.2-litre NSX models, Type S, Type S Zero and conversions. That scope is important: familiar badges can cover several engines, markets and model years, while road cars and competition derivatives may share a name without sharing a usable technical specification.

The mechanical centre is the C32B, a 3,179 cc naturally aspirated v6. The period specification represented here is 206 kW (280 PS) and 304 Nm. Those figures stay attached to this configuration rather than blending regional tunes or later revisions.

The second NSX-R adds a carbon-fibre bonnet, fixed rear wing, suspension and aero tuning around the C32B and six-speed transaxle. The installation is transverse mid engine, rear-wheel drive, working through a 6-speed manual. That combination determines throttle response, traction and the path by which induction, combustion and transmission sound reach the cabin and roadside.

Useful listening markers include hand-balanced C32B VTEC V6, six-speed manual transaxle, reduced cabin insulation, fixed-roof mid-engine body. A genuine cold start records cranking, first combustion and the transition to a settled idle; a warm restart is a different event and should be labelled as such.

Under acceleration, microphone position and engine load reveal different layers. An engine-bay or cabin recording can expose induction and valvetrain detail, while an exterior pass gives more weight to exhaust, tyres, turbocharger or supercharger behaviour and the acoustic effect of speed.

The NA2 identity also makes comparisons within the NSX family meaningful. Closely related editions may differ in intake hardware, boost control, gearing, catalysts, silencers or mass, so their recordings should not be treated as interchangeable merely because the body shell looks similar.

Surviving examples frequently carry replacement exhausts, wheels, suspension or engine parts. Those cars can still make valuable contributions when the changes are documented; the archive simply needs to distinguish a modified survivor from an evidenced factory-stock reference.

The 2002–2005 production period supplies another boundary for research. Manufacturers revised emissions calibrations, equipment and market availability during model runs, and historic output may appear in PS, kilowatts or regional horsepower standards. Keeping units and market context visible prevents false precision.

Body layout matters to sound as much as specification sheets suggest. The two-seat coupé changes cabin volume, resonance and the listener’s distance from the powertrain. Engine position, driveline and body openings can therefore make related engines feel substantially different in use.

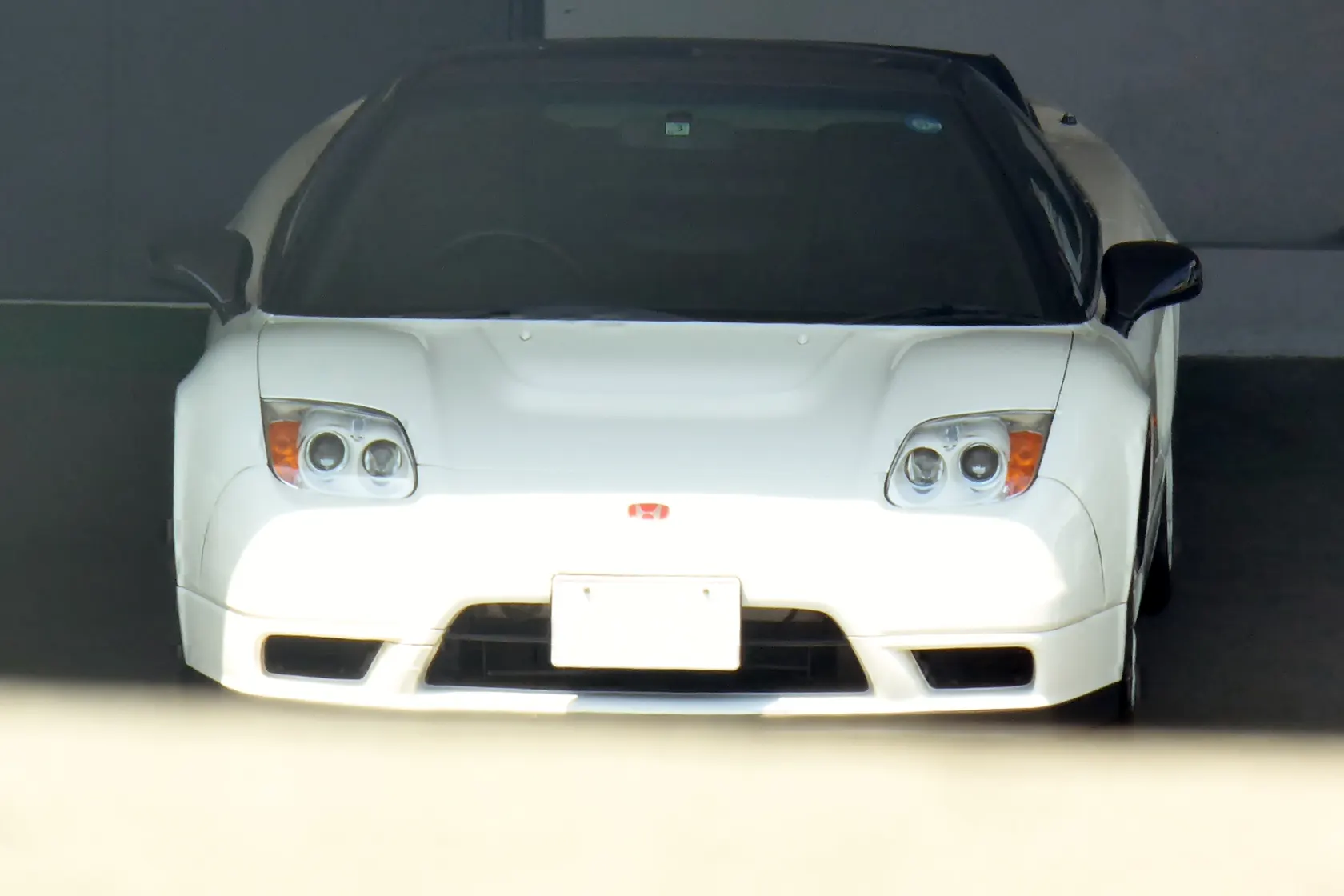

Period photographs establish design and historical context, but appearance alone cannot prove untouched mechanical condition. Originality should be described component by component, especially for intake, forced induction, catalysts, silencers, transmission and final-drive hardware that can alter performance and sound. Service records and dated photographs can make those distinctions clearer without asking readers to accept appearance as proof.

The NSX-R is therefore best understood as a connected mechanical identity: C32B, 6-speed manual, rear-wheel drive and the NA2 boundary. Preserving those elements gives readers a useful story now and gives future community recordings an exact historical home.
